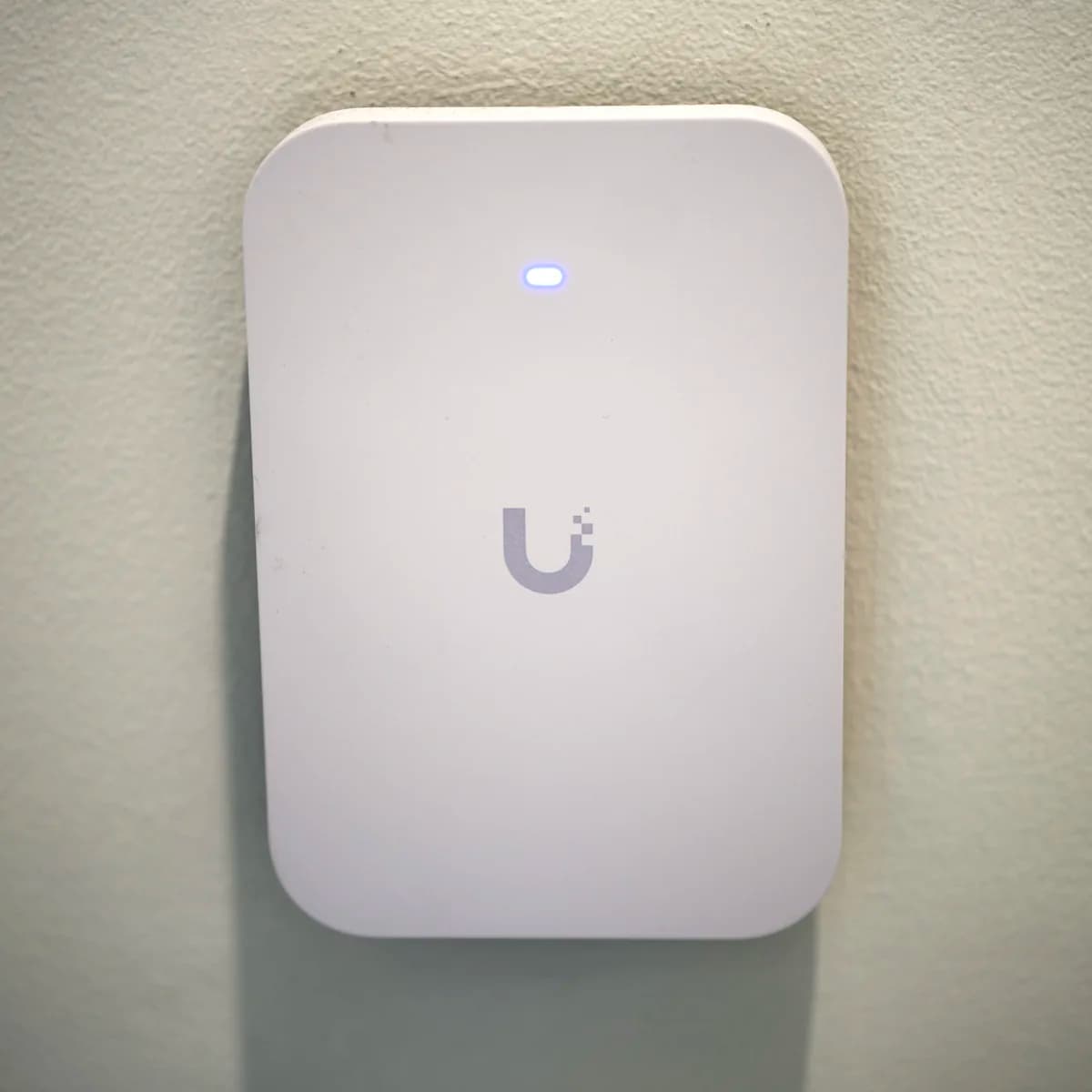

UniFi U7 Pro XG Wall
$279 MSRP
UniFi U7 Pro XG Wall: what it is & who it's for
The U7 Pro XG's radio and 10 GbE uplink in a flat wall-mounted housing of 155 × 108 mm. Coverage, client and power ratings match the ceiling model — 140 m², 300+ clients, PoE+ at 22 W — so the $80 premium buys the form factor. Rooms where a ceiling run is not practical — finished ceilings, rentals, a hallway drop at outlet height — and the switch already has multi-gig PoE+ ports.
Specifications
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
|---|---|
| Bands | Tri-band (2.4 + 5 + 6 GHz) |
| 6 GHz Rate | 5.8 Gbps (BW320) |
| 5 GHz Rate | 4.3 Gbps (BW240) |
| 2.4 GHz Rate | 688 Mbps (BW40) |
| Spatial Streams | 6 |
| 5 GHz MIMO | 2×2 |
| Uplink Port | (1) 10 GbE RJ45 |
| Power Method | PoE+ |
| Max Power Draw | 22 W |
| Max Clients | 300+ |
| Coverage Area | 140 m² (1,500 ft²) |
| Dimensions | 155 × 108 × 33.5 mm |
| Weight | 505 g |
| Max TX Power | 6 GHz 24 dBm · 5 GHz 26 dBm · 2.4 GHz 23 dBm |
| 5 GHz Antenna Gain | 6 dBi |
| 6 GHz Antenna Gain | 6 dBi |
| Operating Temp | -30 to 40 °C (-22 to 104 °F) |
Verdict
The U7 Pro XG's radio and 10 GbE uplink in a flat wall-mounted housing of 155 × 108 mm. Coverage, client and power ratings match the ceiling model — 140 m², 300+ clients, PoE+ at 22 W — so the $80 premium buys the form factor.
Pros
- Wall-mounted and 33.5 mm deep, at 505 g against 750 g for the ceiling U7 Pro XG
- 10 GbE RJ45 uplink on PoE+ at 22 W, as on the ceiling model
- Same six-stream tri-band Wi-Fi 7 ratings as the U7 Pro XG: 5.8 Gbps on 6 GHz, 140 m², 300+ clients
- 1 dBi more 5 GHz antenna gain than the ceiling U7 Pro XG (6 dBi against 5 dBi)
Cons
- $279, which is $80 more than the ceiling U7 Pro XG for the same data rates, coverage and client ratings
- Wall mount only — Ubiquiti lists the ceiling model for ceiling or wall
- The 10 GbE port only pays off behind a 5 or 10 GbE switch port that also supplies PoE+
- Requires UniFi Network 10.0 or later
Best forRooms where a ceiling run is not practical — finished ceilings, rentals, a hallway drop at outlet height — and the switch already has multi-gig PoE+ ports.
