UniFi Pro HD 24 PoE

$999 MSRP
UniFi Pro HD 24 PoE switch, a 1U unit with 24 RJ45 ports and four SFP+ cages

UniFi Pro HD 24 PoE: what it is & who it's for

Every port is multi-gig and every port is PoE++: 22 at 2.5 GbE, two at 10 GbE, a 600 W budget and four 10G SFP+ uplinks. It is the step past the Pro Max 24 PoE for racks where the fast devices outnumber the slow ones. Racks where most wired devices are multi-gig — Wi-Fi 7 access points, 2.5 GbE workstations, a NAS — and at least one 10 GbE PoE++ access point needs power and speed from the same port.

Specifications

UniFi Pro HD 24 PoE specifications
RJ45 Ports(22) 2.5 GbE + (2) 10 GbE (all 24 PoE++)
Uplinks(4) 10G SFP+
PoE Ports24
PoE Standards802.3at / bt
Total PoE Budget600 W
Switching Capacity230 Gbps
Forwarding Rate171 Mpps
LayerLayer 2 + Layer 3
Form FactorRackmount (1U)
Max Power Draw660 W (incl. PoE) / 60 W (excl. PoE)
Power AdapterInternal
ManagementUniFi Network
Max PoE per Port64 W (PoE++)
Non-Blocking Throughput115 Gbps
MAC Address Table32,000
Power RedundancyYes (USP-RPS)
Dimensions442 × 400 × 44 mm
Weight6.2 kg
Supported Rack Depth600–1,200 mm

Verdict

Every port is multi-gig and every port is PoE++: 22 at 2.5 GbE, two at 10 GbE, a 600 W budget and four 10G SFP+ uplinks. It is the step past the Pro Max 24 PoE for racks where the fast devices outnumber the slow ones.

Pros
  • All 24 RJ45 ports are multi-gig: (22) 2.5 GbE plus (2) 10 GbE
  • PoE++ on every RJ45 port, up to 64 W a port, from a 600 W budget
  • Two 10 GbE PoE++ ports, so a 10 GbE access point such as the E7 or U7 Pro XGS gets power and its full uplink on one cable
  • Four 10G SFP+ uplinks and a 32,000-entry MAC table, both double the Pro Max 24 PoE, with 230 Gbps of switching against 112 Gbps
  • Layer 3, Etherlighting and a USP-RPS input, as on the Pro Max 24 PoE
Cons
  • $999 — $200 more than the Pro Max 24 PoE and $300 more than the Pro 24 PoE
  • 400 mm deep against 325 mm for the Pro Max 24 PoE, and Ubiquiti lists a supported rack depth from 600 mm rather than 400 mm
  • Only two of the 24 RJ45 ports reach 10 GbE; the other 22 stop at 2.5 GbE
  • Rated to draw up to 660 W with PoE fully loaded, so check the circuit and the UPS behind it
Best forRacks where most wired devices are multi-gig — Wi-Fi 7 access points, 2.5 GbE workstations, a NAS — and at least one 10 GbE PoE++ access point needs power and speed from the same port.

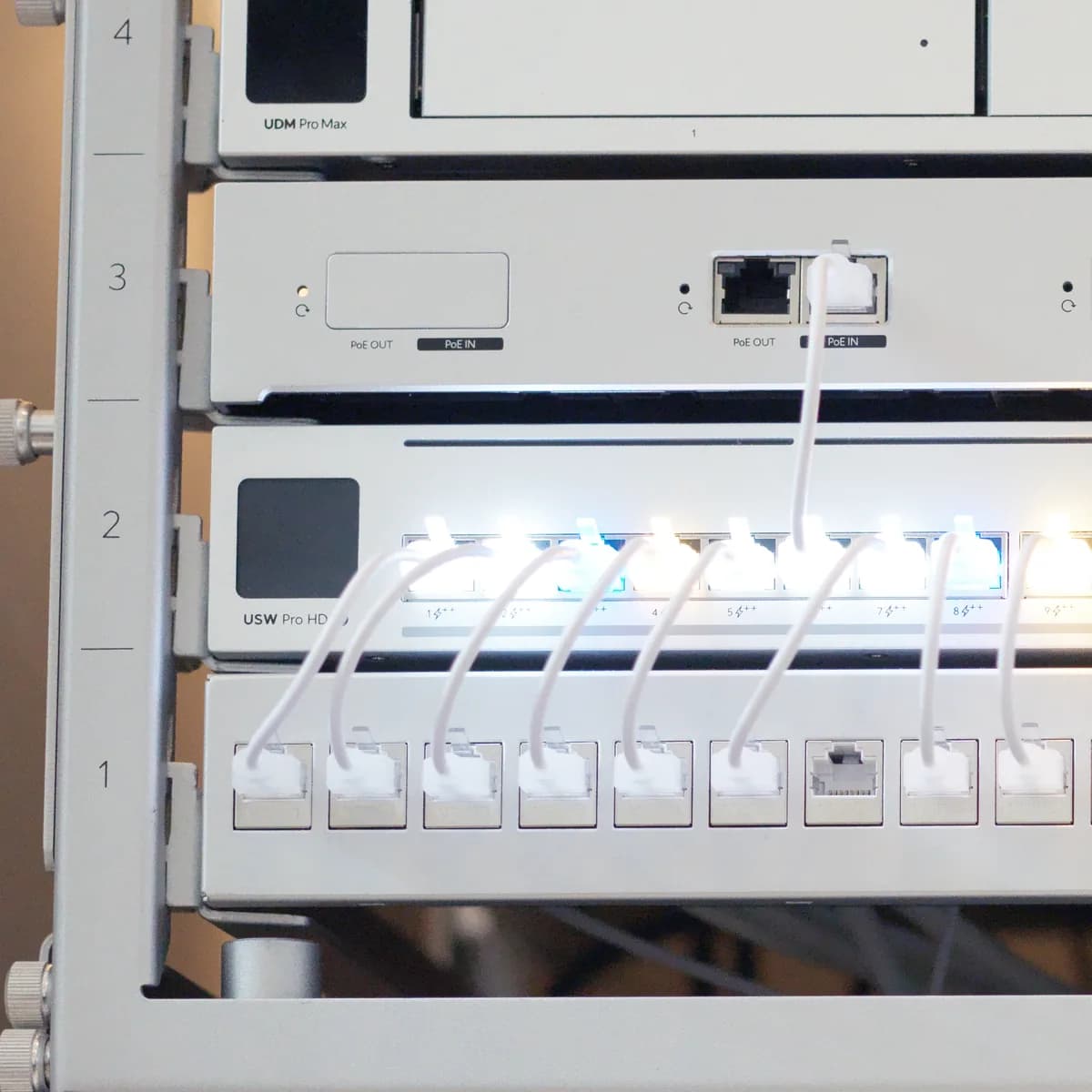

A USW Pro HD at U2 of a UniFi rack, its front panel labelled, ports lit and patched in white to the panel below.
The Pro HD 24 PoE in our rack.
